Option dialog box


This dialog box is used to configure the CS+ environment.

All settings made via this dialog box are saved as preferences for the current user.

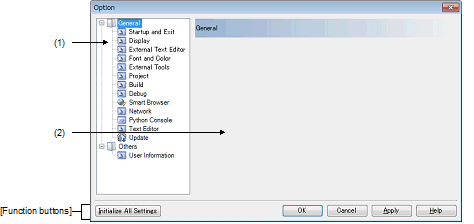

Figure A.41

Option Dialog Box



The following items are explained here.

[How to open]

-

From the [Tool] menu, select [Options...].

[Description of each area]

(1)

Category selection area

Select the items to configure from the following categories.

Category

Description

[General - Startup and Exit] category

Configure startup and shutdown.

[General - Display] category

Configure messages from the application.

[General - External Text Editor] category

Configure the external text editor.

[General - Font and Color] category

Configure the fonts and colors shown on each panel.

[General - External Tools] category

Configure the startup of external tools.

[General - Project] category

Configure the project.

[General - Build] category

Configure building.

[General - Debug] category

Configure debugging.

[General - Smart Browser] category

Configure the smart browser.

[General - Network] category

Configure the network.

[General - Python Console] category

Configure the Python console.

[General - Text Editor] category

Configure the text editor.

[General - Update] category

Configure update.

[Other - User Information] category

Configure user information.

(2)

Settings

This area is used to configure the various options for the selected category.

For details about configuration for a particular category, see the section for the category in question.

[Function buttons]

Button

Function

Initialize All Settings

Restores all settings on this dialog box to their default values.

Note, however, that newly added items in the [General - External Tools] category will not be removed.

OK

Applies all setting and closes this dialog box.

Cancel

Ignores the setting and closes this dialog box.

Apply

Applies all setting (does not close this dialog box).

Help

Displays the help of this dialog box.
