8. Renesas Common Project Converter

The Renesas Common Project Converter converts a Renesas Common Project file into CMake and Visual Studio Code configuration files.

This tool is intended for users who want to import an existing Renesas project into Visual Studio Code and continue development using the Renesas VS Code extension environment.

Note

The converter generates configuration files. It does not install CMake or the toolchain.

The current version only supports CS+ Renesas Common Project files with the .rcpe extension for RX projects using the CC-RX toolchain.

8.1. Supported Input

Item	Support status
Common project file	.rcpe only
Source IDE	CS+
Device family	RX
Toolchain	CC-RX

8.2. Generated Files

After conversion, the following files are generated in the folder that contains the selected .rcpe file.

8.2.1. VS Code configuration files

• .vscode/launch.json

• .vscode/settings.json

• .vscode/tasks.json

8.2.2. CMake configuration files

• CMakeLists.txt

• Config.cmake

• cmake/cross.cmake

• cmake/GeneratedCfgRCP.cmake

• cmake/GeneratedLinkerObject.cmake

• cmake/GeneratedSrcRCP.cmake

Note

If generated files with the same names already exist, they may be overwritten. Back up any manually edited configuration files before running the converter again.

8.3. Using the Converter

The converter can be started in the following ways:

• From the Import Project view in the Renesas Platform sidebar

• From the Command Palette

• From the Explorer Context Menu

8.3.1. Import Project View

Use this flow when importing an existing CS+ project into Visual Studio Code.

To import a project:

1. Open Visual Studio Code.

2. Open the Renesas activity and click Import Project in the Import Project view.

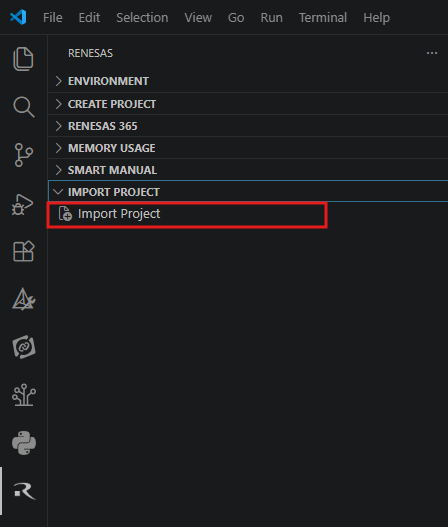

   The Import Project View

3. Select Import Renesas common project file.

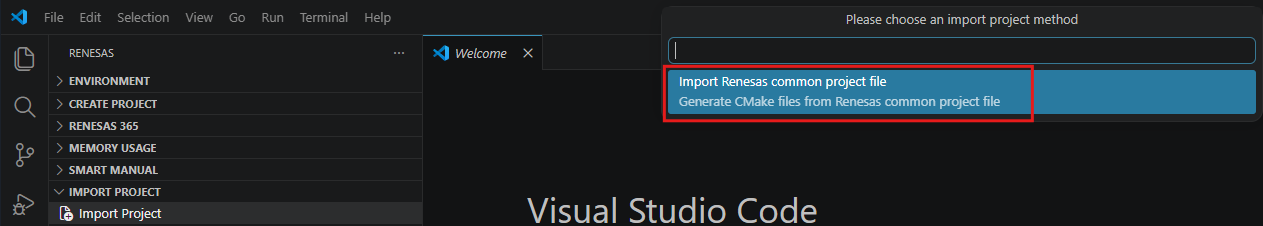

   Import Renesas Common Project File

4. In the file picker dialog, select a .rcpe file.

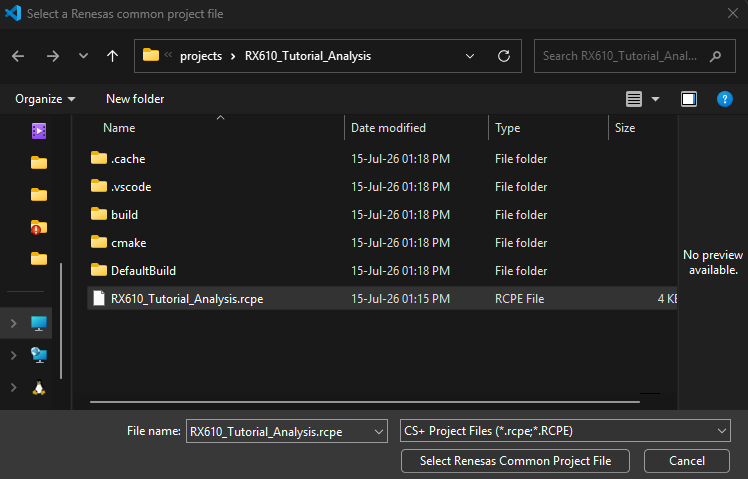

   File Picker Dialog

5. Visual Studio Code opens the folder that contains the selected .rcpe file.

   Note

   If the selected file is not in the currently opened workspace, the converter opens the folder that contains the selected file.

   This allows users to select a .rcpe file first without manually opening the project folder beforehand.

6. Conversion starts automatically after the folder is opened.

When conversion finishes successfully, the generated CMake and Visual Studio Code configuration files are created in the project folder.

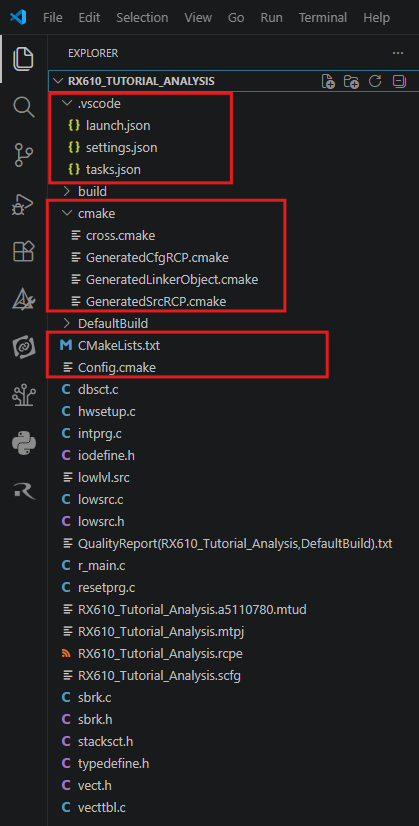

Generated Files

8.3.2. Command Palette

Use this flow when you want the converter to detect .rcpe files in the current workspace.

To run the converter from the Command Palette:

1. Open the Command Palette and run the command for converting a Renesas Common Project file.

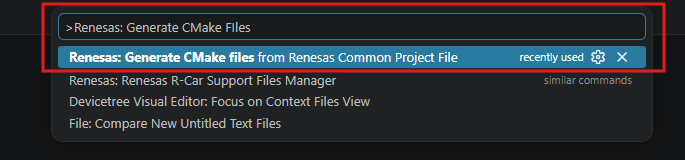

   Command Palette

2. The converter scans the current workspace for supported project files.

The following behaviour is applied:

• If exactly one .rcpe file is found, the converter opens the folder containing the file if needed and starts conversion automatically.

• If multiple .rcpe files are found, a selection list is displayed. Select the file to convert.

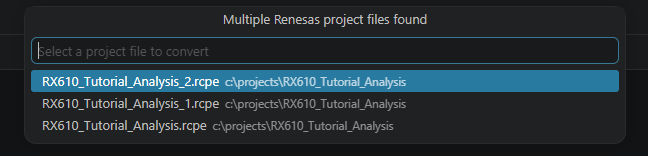

  Multi Renesas Common Project Files Found

• If no .rcpe file is found, an information message is displayed.

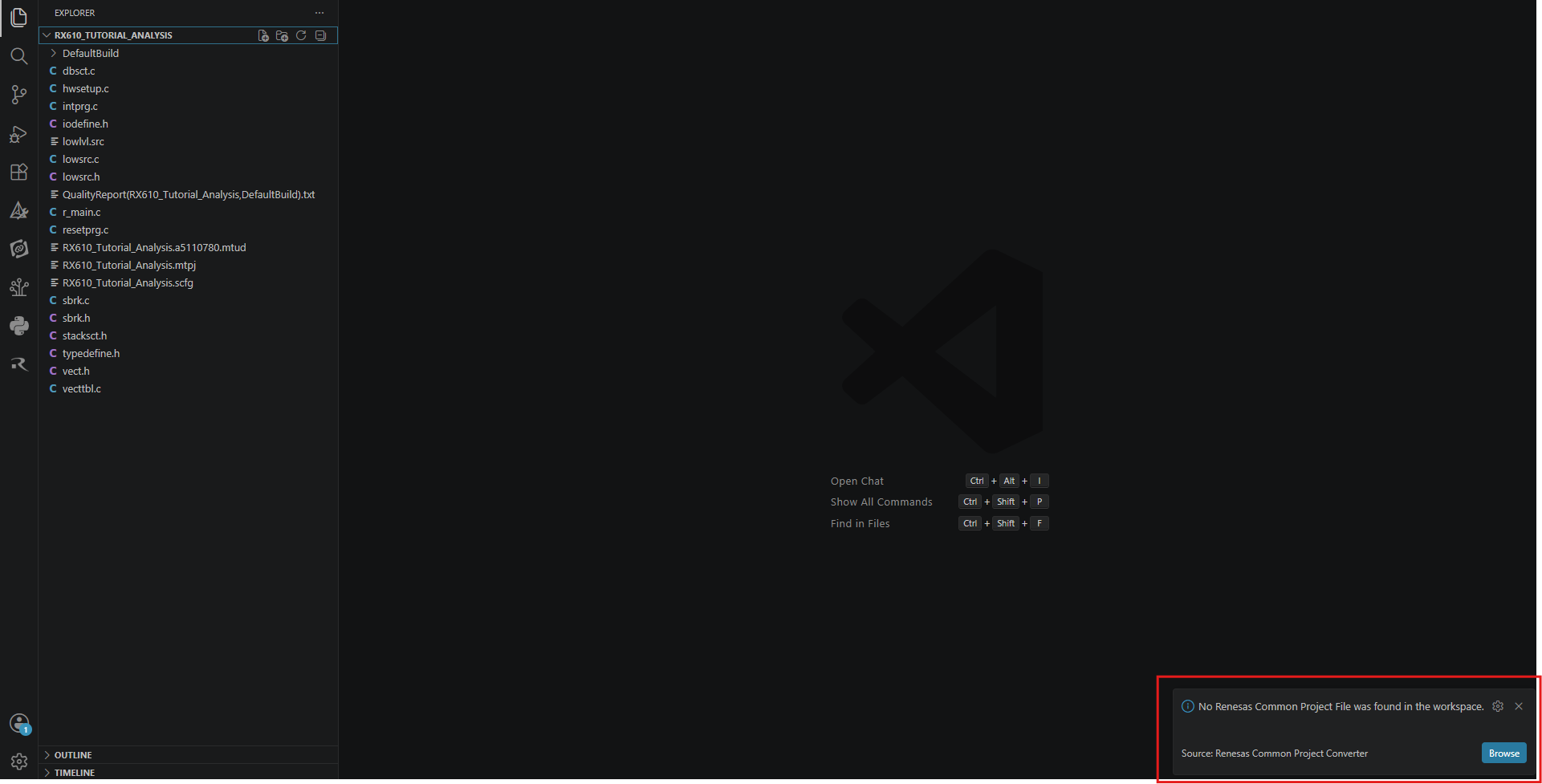

  No Renesas Common Project Files Found

  • Select Browse to manually choose a .rcpe file.



    Browse File

  • Cancel the message to stop the conversion.

8.3.3. Explorer Context Menu

Use this flow when the project folder is already opened in Visual Studio Code.

To run the converter from the Explorer context menu:

1. In the Explorer view, right-click a .rcpe file and select Generate CMake Files from the context menu.

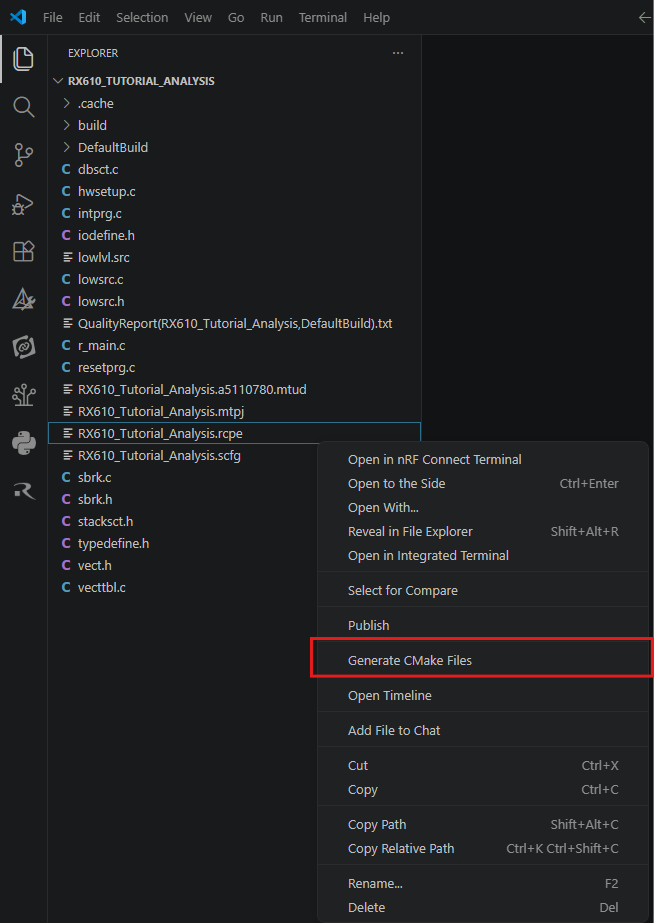

   Context Menu

2. The conversion starts immediately.

Note

Multi-file selection from the context menu is not supported. Select one .rcpe file at a time.

8.4. Conversion Progress and Result

8.4.1. Progress Notification

During conversion, Visual Studio Code shows a progress notification:

Converting project...

8.4.2. Successful Conversion

When conversion completes successfully, the following message is shown:

Project conversion completed.

Detailed conversion logs are written to Output > Renesas CMake Converter

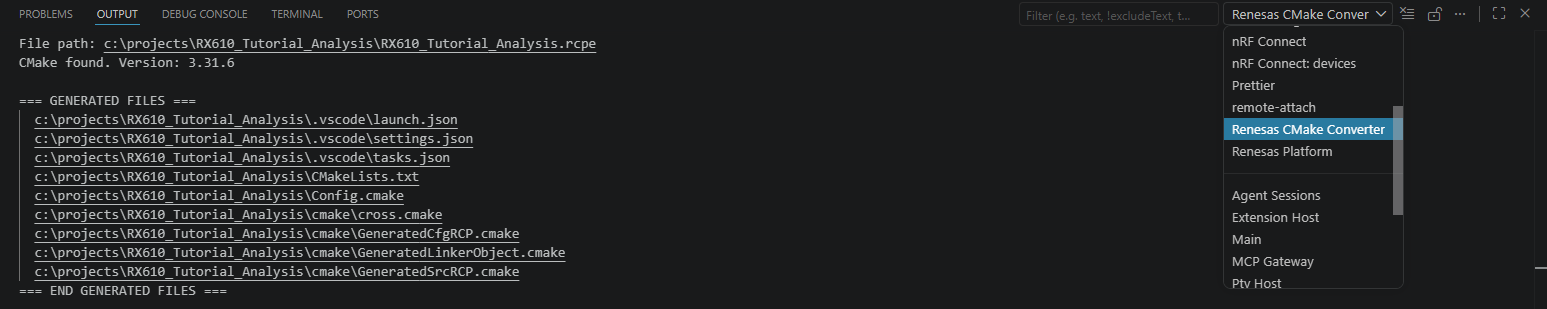

Output Channel

8.4.3. Failed Conversion

If the conversion fails, the following message is shown:

Project conversion failed. Check the [Output] > [Renesas CMake Converter] channel for details.

Detailed error information is written to Output > Renesas CMake Converter

Example error output:

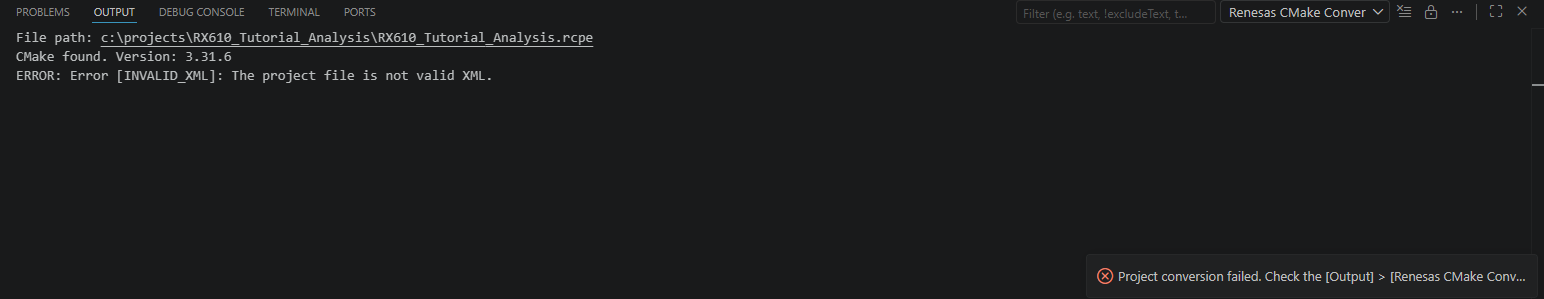

Failed Conversion

In this case, check the selected project file and the error details in the Renesas CMake Converter output channel.
